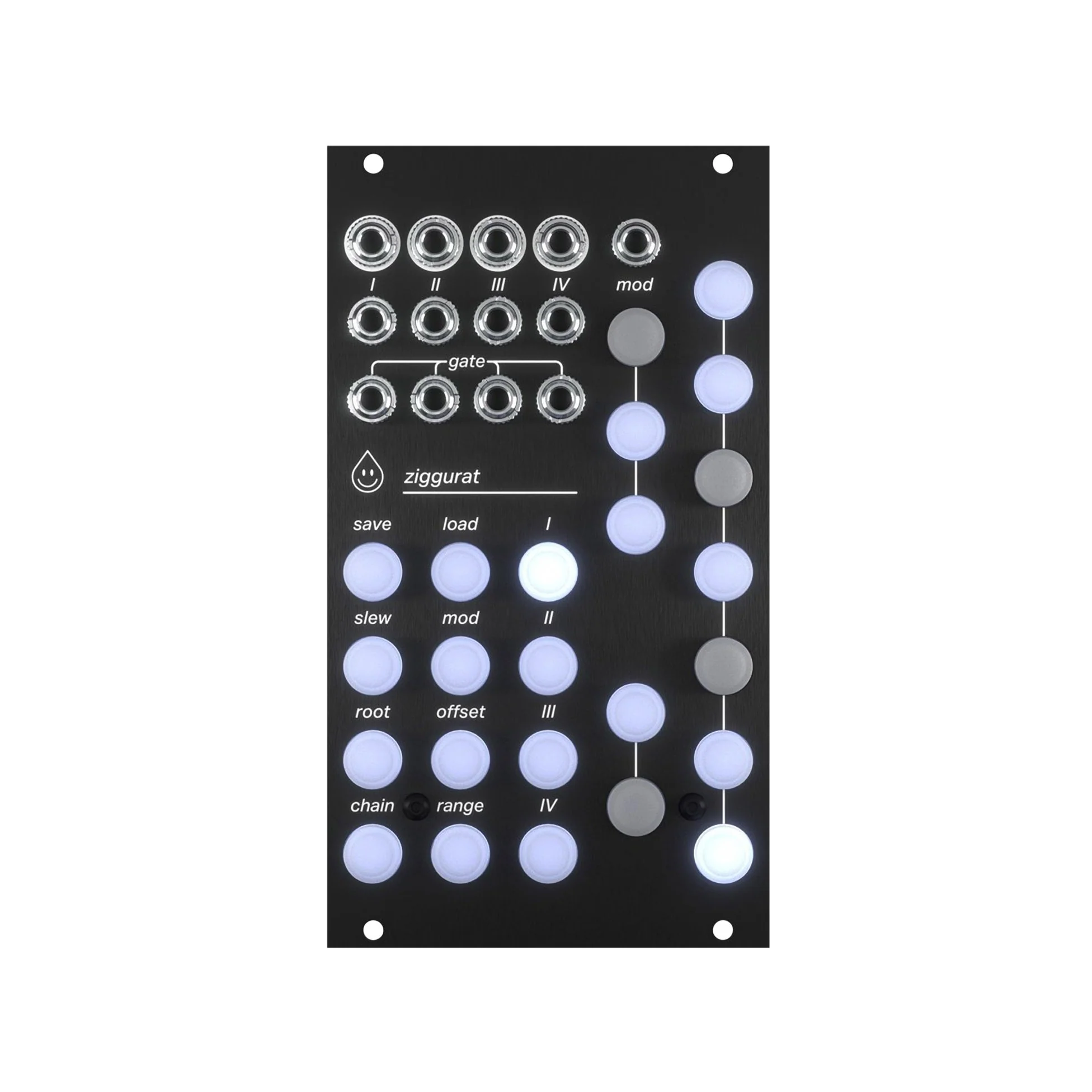

Acid Rain Technology Ziggurat

Four-channel pitch quantiser with intuitive note selection, realtime transposition and built-in sequencing to keep complex Eurorack patches locked in key. Individual slew per channel, flexible voltage ranges and assignable CV modulation make it equally capable of subtle harmonic shifts or evolving generative sequences.

Specs:

• Four-channel pitch quantiser
• Keyboard-style note selection
• Linkable channels
• 35 preset memory slots
• Per-channel slew (0.1 to 5 seconds)
• Semitone transpose per channel
• Adjustable output range from -4V to +8V
• SH-101 style step sequencer
• Assignable modulation CV input
• Eurorack format

Video: https://youtu.be/7jsWECfEiFo

Product Specs

• Item Number: 42153
• Make: Acid Rain Technology
• Model: Ziggurat
• Condition: Brand New
• Finish: Black
• Categories: keyboards-and-synths ⇒ eurorack
• Function: CV Modulation Digital Quad Quantizer Sample and Hold Sequencer Utility
• Made In: United States
• MPN: ART-Zig
• Modular Grid: Eurorack ⓘ ＋
• Dimensions: 14 HP 25 mm deep
• Power: 90 mA +12V 10 mA -12V ? mA 5V
