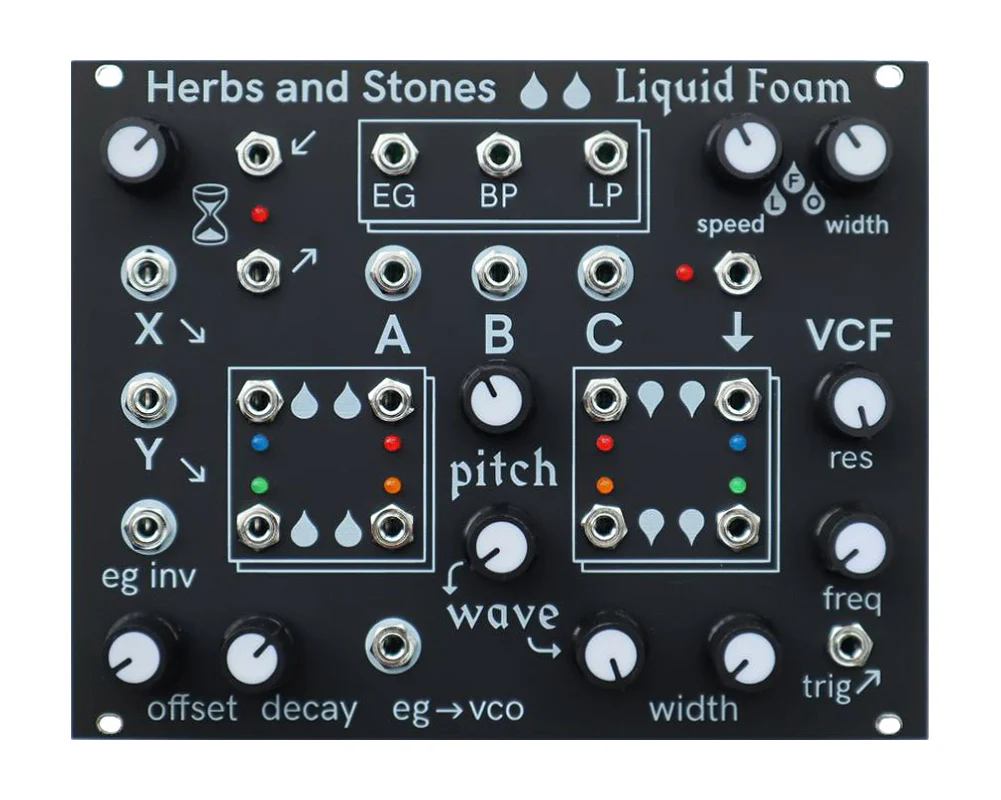

Herbs & Stones Liquid Foam Modular Mono Analogue Groovebox Eurorack Module

Liquid Foam is a modular monophonic analog groovebox that revolves around a dual sequencer designed to encourage complex pattern exploration.

Fully compatible with eurorack voltages and standards, it can generate anything from straightforward 4/4 loops to ever-changing byzantine synth lines, off-key tantrums and organic percussive phrases.

At the core there’s an analog VCO with two stages of waveshaping, a decay-only EG that can be inverted any step, a 2-pole resonant low pass VCF and a CMOS-based final overdrive stage.

Added features for eurorack:

• New input circuitry will accept any type of signal, not just 5V gates

• Newly designed filter and wave mixer

• Three new outputs: trigger, envelope generator and bandpass filter

• No more delay when unplugging an external clock signal

• The eg offset knob now affects the envelope generator also in non-inverted mode

Width: 32HP Power: 45mA at +12V 9mA at -12V Max depth: 20 mm

Includes a power connector, 4x rack mounting screws.

Video: https://youtu.be/OAvuXVMz0SM

Product Specs

• Item Number: 23925
• Make: Herbs & Stones
• Model: Liquid Foam Eurorack Module
• Condition: Brand New
• Finish: Black
• Categories: keyboards-and-synths ⇒ eurorack
• Function: Envelope Generator Filter Sequencer Synth Voice Drum
• Made In: Italy
• MPN: HF-LF-EURO
• Modular Grid: Eurorack ⓘ ＋
• Dimensions*: 32 HP 20 mm deep
• Power*: 45 mA +12V 9 mA -12V ? mA 5V

* User contributed details
